【Product Overview】

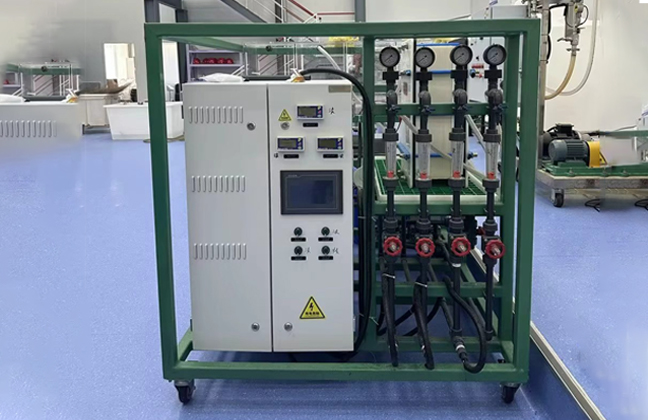

The Universal Manual Electrodialysis Unit is a versatile experimental platform that integrates three core processes: conventional electrodialysis, bipolar membrane electrodialysis, and acid-salt separation.

【Product Parameters】

Dimensions (mm³)	120013001200
Weight (kg)	200
Membrane Dimensions (mm²)	600×300
Number of Membrane Pairs	30~50
Effective Area (m²)	0.09
Processing Capacity (L/batch)	40L/batch
Operating Voltage (V)	0~80V
Operating Current (A)	0~100V

【Product Advantages】

Floor-Standing Design

The unit features a floor-standing design, offering comprehensive functionality, reliable operation, and user-friendly, accurate control. It supports standard 2-compartment electrodialysis for desalination/concentration, 2-compartment bipolar membrane electrodialysis, and 3-compartment bipolar membrane electrodialysis.
Built-in DC Power Supply

An integrated DC power supply allows precise voltage and current adjustment to minimize experimental error. The system includes a heat exchanger. by connecting an external cooling medium, heat generated by the current during operation can be effectively controlled.
Corrosion & Oxidation Resistance

All pipelines, valves, and wetted components are constructed from non-metallic, corrosion-resistant, and oxidation-resistant materials to withstand high-salinity, acidic, and alkaline environments.
Short Delivery Cycle

Reduce on-site construction complexity and enable faster commissioning and use.

【Water quality conditions】

【Application Fields】

Chemical & Fine Chemical Industry
Pilot-Scale Process Intensification: Validates the "optimal process parameters" identified at the benchtop scale through continuous, stable, and long-duration operation on the floor-standing unit. It assesses long-term membrane stack stability, fouling propensity, and cleaning cycles, providing precise engineering data (e.g., energy consumption, mass balance, membrane area requirement) for the design of 10,000-ton scale industrial plants.
Small-Scale Flexible Production:High-Value Chemical Manufacturing: Directly produces tonnage quantities of specialty chemicals, pharmaceutical intermediates, and specialty surfactants to fulfill high-value, low-volume market demands.
Desalination & Purification Services: Offers small-batch desalination and purification services for client materials.
Petrochemical & Chemical Fiber Industry
On-Site Pilot Testing: Connects directly to an actual waste stream (e.g., spent alkali, saline wastewater) within a petrochemical or chemical fiber plant for on-site pilot trials. This represents the most reliable validation method, as the water matrix is entirely authentic, and results directly inform the final industrial plant design.
Process Package Development: Data acquired from floor-standing unit trials forms the core of the final technical process package, used for project bidding and engineering construction.
Power & Metallurgical Industry
ZLD Pilot Testing: Establishes a small-scale pilot platform ("Pretreatment - RO - Electrodialysis - Evaporation Crystallization") at a power plant or mining site.
Resource Recovery Pilot Testing: Conducts pilot-scale recovery of valuable metals (e.g., Li, Co) from metallurgical leachates to verify technical and economic feasibility.
Biotechnology & Pharmaceuticals
Clinical Trial Sample Production: During development, produces kilogram quantities of Active Pharmaceutical Ingredients (APIs) conforming to GMP standards for clinical trials. The floor-standing ED system meets this small-scale, high-quality production demand for applications like protein desalination/buffer exchange and antibiotic purification.
Purification of Enzymes & Amino Acids: Enables small-scale continuous production.
Food & Beverage Industry
Specialty Product Manufacturing: Used by small/medium wineries to produce deacidified wine, or by specialty food manufacturers for low-sodium soy sauce, desalinated whey powder, etc.
Existing Production Line Retrofit Trials: Before integrating ED technology into an existing large-scale production line (e.g., a whey processing line), conducts online trials using the floor-standing unit to ensure seamless integration.
Environmental Protection & Water Treatment
Landfill Leachate Treatment: Conducts pilot-scale validation of leachate concentrate volume reduction at landfill or incineration sites.
Industrial Wastewater Reuse Projects: Provides customized pilot solutions for wastewater reuse to specific factories (e.g., electronics, electroplating plants).
